Nissan CVT RE0F09A RE0F09B JF010E Transmission Common Error Codes and Repair Measure

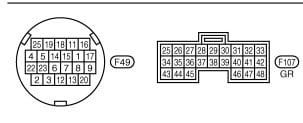

JF010E Pin Out
JF010E Pin Out (Note that connection end A is the mirror of the other end, see next pic)
F49 End B
Error codeFault Code DescriptionPossible causeNote
P0710Transmission Fluid Temperature Sensor Circuit Malfunction (ATF TEMP SEN/CIRC)1. Wire harness/adaptor open or short
2. CVT Oil Temperature Sensor
1. Terminal 42 W/R voltage with respect to ground: 0V
2. Terminal 47 V voltage with respect to ground when the key is turned on: CVT oil temp 20 degree C: around 2.0V; CVT oil temp 80 degree C, around 1.0V
3. Resistance check: resistance between terminal 17 and 19: 20 degree C: about 6.5kΩ; 80 degree C: about 0.9kΩ
P0715Input/Turbine Speed Sensor Circuit (INPUT SPD SEN/CIRC)1. Wire harness/adaptor open or short
2. Input speed sensor
1. Terminal 38 with respect to ground, when gear in “M1”, vehicle speed is 20KM/h, reading is about 700HZ;
2. Terminal 42 with respect to ground: 0V;
3. Terminal 46 with respect to ground when key is turned on: 5V
P0720Output Speed Sensor Circuit (VEH SPD SEN/CIR AT)1. Wire harness/adaptor open or short
2. Output speed sensor(Auxilary speed sensor)
1. Reading of VSP sensor from OBD should have a value close to the speed meter on the dashboard
2. Terminal 29 with respect to ground, when gear in “D”, vehicle speed is 20KM/h, reading is about 400HZ;
3. Terminal 42 with respect to ground: 0V;
P0725Engine Speed Input Circuit (ENGINE SPEED SIG)1. Wire harness/adaptor open or short (from engine control unit to transmission control unit)Check wire connections
P0730Incorrect Gear Ratio (BELT DAMG)1. TCM uses input speed sensor and output speed sensor to calculate current gear ratio, if TCM detects an unknown (out of range) gear ratio, this error code is populated.1. Inspect transmission pulley set and belt
2. Confirm correctness of readings of input and output speed sensors with the method mentioned in this article
P0740Torque Converter Clutch Circuit Malfunction (TCC SOLENOID/CIRC)Special note: when ATF temperature is too low, TCM will not allow engagement.
1. Valve body
2. Wire connections
1. Terminal 3 with respect to ground, when vehicle driving in gear “D”, CVT TCC engaged: 6V, not engaged: 1.5V
2. Terminal 12 with respect to ground: 3 – 9 Ω
P0744Torque Converter Clutch Circuit Intermittent (A/T TCC S/V FNCTN)1. Valve body
2. Transmission fluid
1. Confirm correctness of readings of input and output speed sensors with the method mentioned in this article
P0745Pressure Control Solenoid ‘A’ (L/PRESS SOL/CIRC)1. Wire harness/adaptor open or short
2. Valve body
(Be cautious! Secure the vehicle and operate in a controlled environment)
1. Terminal 1 with respect to ground, with key turned on and gas padel fully applied: 1.0V; with key turned on and no gas padel: 5.0 – 7.0V
2. Termine 2 with respect to ground: 3 – 9 Ω
P0746Pressure Control Solenoid ‘A’ Performance or Stuck Off (PRS CNT SOL/A FCTN)1. Valve body
2. Hydraulic fluid and hydraulic system
3. Input speed sensor
4. Output speed sensor
P0776Pressure Control Solenoid ‘B’ Performance or Stuck Off (6 PRS
CNT SOL/B FCTN)
1. Valve body
2. Hydraulic system
P0778Pressure Control Solenoid ‘B’ Electrical (PRS CNT SOL/B CIRC)1. Wire harness/adaptor open or short
2. Valve body
Terminal 3 with respect to ground: 3 – 9 Ω
P0840Transmission Fluid Pressure Sensor/Switch A (TR
PRS SENS/A CIRC)
1. Transmission hydraulic sensor A (Auxilary pressure sensor)
2. Wire harness/adaptor open or short
Termine 37, when key is ON and gear in “N”, with respect to ground, 1V
Terminal 42 with respect to ground: 0V
Terminal 46 with respect to ground when key is ON: 5.0V
P0841Transmission Fluid Pressure Sensor/Switch A Circuit Range/Performance (PRESS SEN/FNCTN)1. Transmission hydraulic sensor A (Auxilary pressure sensor)
2. Transmission hydraulic sensor B (Main pressure sensor)
3. Wire harness/adaptor open or short
P0845Transmission Fluid Pressure Sensor/Switch B Circuit (TR PRS SENS/B CIRC)1. Transmission hydraulic sensor B (Main pressure sensor)
2. Wire harness/adaptor open or short
Termine 41, when key is ON and gear in “N”, with respect to ground, 0.7 – 3.5V
Terminal 42 with respect to ground: 0V
Terminal 46 with respect to ground when key is ON: 5.0V
P0868Transmission Fluid Pressure Low (SEC/PRESS
DOWN)
1. Wire harness/adaptor open or short
2. Valve body
3. Transmission hydraulic sensor A (Auxilary pressure sensor)
4. Hydraulic system
P1723CVT Speed Sensor Circuit (CVT
SPD SEN/FNCTN)
1. Wire harness/adaptor open or short
2. Input speed sensor
3. Output speed sensor
4. Engine speed sensor
P1740Lock-Up Select Solenoid Valve Circuit (LU-SLCT SOL/CIRC)1. Valve body
2. Wire harness/adaptor open or short
Please wait at least 5 seconds to measure after changing gear.
Terminal 4 with respect to ground, when gear in “P” or “N”: voltage of the battery
Terminal 4 with respect to ground, when gear in “R” or “D”: 0V
Terminal 13 with respect to ground, 6- 19 Ω
P1745Line Pressure Control (L/PRESS CONTROL)1. TCM
P1777STEP MOTR CIRC1. Step motor
2. Wire harness/adaptor open or short
Adaptor F49, resistance between terminal 6 and 7: around 30 Ω
Adaptor F49, resistance between terminal 8 and 9: around 30 Ω
Adaptor F49, resistance between terminal 6/7/8/9 with respect to ground: around 15 Ω
P1778STEP MOTR/FNC 1. Step motor
